Benx PTH SX

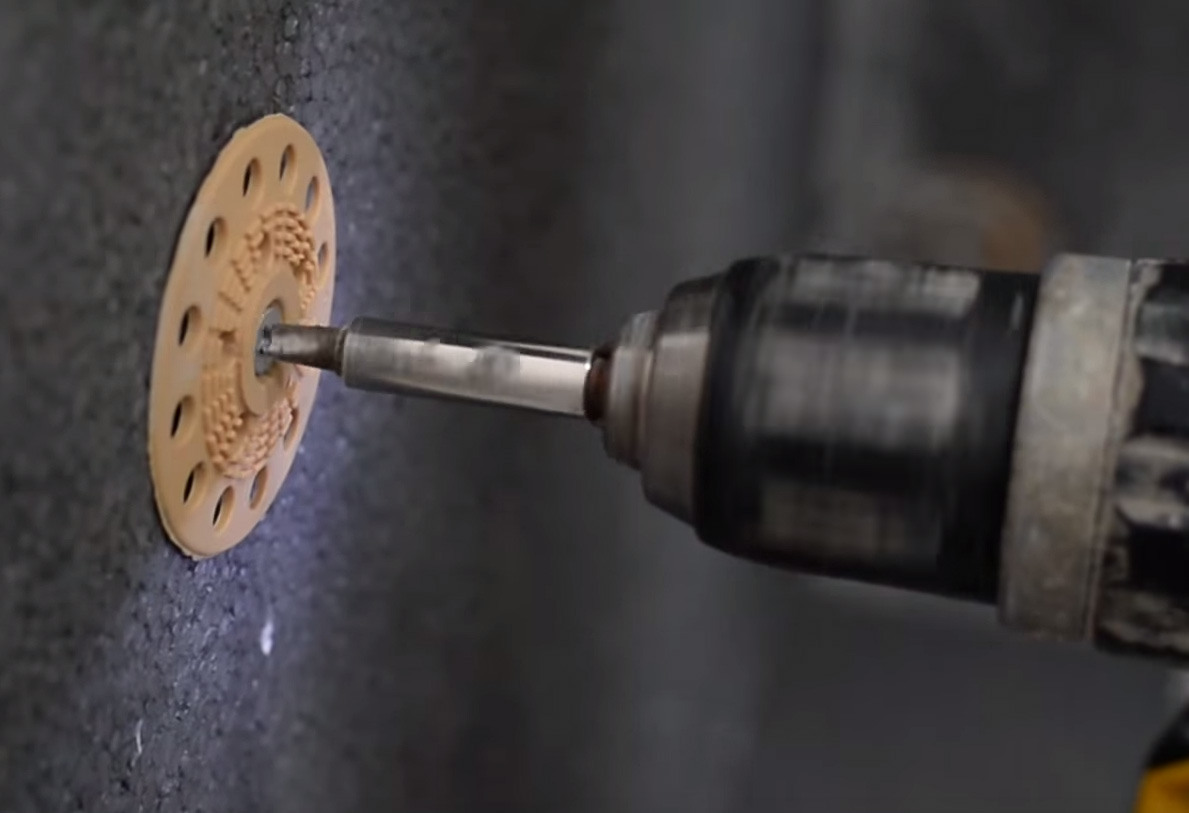

For fixing insulation boards up to a thickness of 220mm into variable substrates due its pin having a screw type application. The plastic centre fixing pin has a Torx head and when installed has excellent pull out resistances.

Difficult concrete and masonry substrates can be overcome with this fixing; a pull out test on the substrate is always recommended.

  • 135 - 255 mm

  • 200 for 135 & 155 mm lengths
    100 for lengths over 155 mm

Mechanical Fixing of Insulation to Various Substrates

Mechanical fixings or anchors play an important function in the way in which External Wall Insulation Systems perform under building and dynamic loadings. The role of the fixing is far greater than simply holding the insulation in place until the render is applied, it has to accommodate movement within the structure, positive and negative wind pressure and supporting the self-weight of the system to name a few key functions.

There are a number of different fixings that can be used and it is important to select the fixing for the application and in some instances this requires on site pull out tests to be completed to determine the performance of the fixing with the substrate.

Based on site conditions and location along with site based test results, a specific fixing pattern may be required. Please contact the Benx technical team for advice.

All masonry based EWI fixings are tested and Certified in accordance with ETAG 014 ‘Plastic Anchors for ETICS’. Within this standard there are 5 categories for which the fixings can be Certified as being acceptable to be used in and these can be seen in the table below. If a substrate is not categorised then on site testing must be done.

Technical Information

  • Anchor Body Material

    Polypropylene

  • Pin Material

    Reinforced Polyamide

  • Hammer or Screw Set

    Screw

  • Minimum Embedment Depth

    35 mm

  • Drill Hole Diameter

    8 mm

  • Point Thermal Transmittance

    0.000 W/K

  • ETA Certificate Number

    10/0028

  • ETA Classification

    A – B – C – D – E

  • Typical Pull Out Into Solid Brick

    1.20 kN

  • Lengths

    135 – 255 mm

  • Quantity Per Box

    • Quantity 200

      135 & 155 mm

    • Quantity 100

      155 mm
