Supertech Weatherboard system - A1 Fire Classification to EN13501-1
A single facet autoclaved cellulose fibre reinforced cement plank, Supertech Weatherboard is lightweight, requires little maintenance, is rot free, can be used in the same way as wood and allows you to create truly stunning facades.
Available in a standard board size of 190mm wide and in two finishes, natural timber effect stained and natural timber effect painted, Supertech offers an attractive alternative to traditional timber boarding and plastic effect PVCu cladding. Supertech Weatherboard can be installed either horizontally in a traditional lapped style (most popular way) or vertically in a castellated, lapped or flush-fitted style..
Used by architects, national house builders, homeowners and contractors Supertech Weatherboard is factory finished and provides substantial design opportunities.
A1 Fire Classification BS EN 13501-1: 2018.
Designed to stand the test of time
Made from reinforced cellulose fibre cement, Supertech Weatherboard has high levels of impact resistance, excellent weathering properties and outstanding levels of durability. It is a façade which will withstand the demanding test of time.
The entire system
The Supertech Weatherboard range comes with a full collection of colour matched screws, profiles and accessories.
Recommended fixings
Supertech Weatherboard is installed using screws or nails in a secret fix method. There is no requirement for pre-drilling. For the top and bottom planks where fixings are visible, we are able to supply colour matched fixings.
Key Applications
- Ventilated rainscreen cladding
- Over-cladding for existing buildings
- New build façades
- Feature detailing
- Sheds and summer houses
Features
- A1 Fire Classification BS EN 13501-1: 2018
- BBA Accredited
- UK factory applied colour
- Easy to install and lightweight
- Range of colour matching aluminium trims available
- Low maintenance, long performance life
- Excellent appearance without the imperfections seen in timber
Cutting and Workability
Supertech is lightweight and easy to install. The weatherboard can be cut, drilled and nailed with conventional woodworking tools in a similar fashion to timber.
For cutting the product in any volume, we recommend the use of an RCM polycrystalline diamond Dart Blade to avoid excessive wear on other blades. Alternatively, RCM offer a complete fabrication service, please contact our technical department for details.
Suitable for the Following Construction Types
-
Lightweight Steel Frame
-
Timber Frame
-
Modular / Offsite
-
Concrete Frame
Trims and Accessories
-
Used to join External symetrical and asymetrical corner profiles. 300mm long.
-
Used to provide termination of Supertech plank at internal corners when meeting other finishes 3000mm long. A universal aluminium trim used to wrap around...
-
Finishing profile where the end batten needs to be covered to provide a neat finish. End Profile 65 for Benx Supertech™ Plank 3000m long x 65mm x 10mm...
-
External Corner Bay Profile for Benx Supertech™ Plank Used to provide a neat finish to the external corners of a bay window. External corner Bay profiles...
-
End trim to terminate Supertech™ plank into a window reveal or soffit 3000mm long. 3000m long x 45mm x 15mm x 8mm Please note that these trims must...
-
Used to provide a junction at Supertech plank Internal corners 3000mm long.
-
Joint Profile for Benx Supertech Plank Joint profiles are used vertically to create a clear dividing line between two runs of cladding. This may be to...
-
Designed to allow air to flow through the system whilst protecting against vermin and some insects 3000mm long.
-
Supertech™ Aluminium Starter Profile is an accessory for fixing the initial Supertech plank in a cladding installation. The starter profile covers the...
Technical Data
-
Nominal Density
1380 kg/m3
-
Bending Strength
((Modulus of Rupture))15.85 N/mm2
-
Modulus of Elasticity
((MoE))6365 N/mm2
-
Thermal Conductivity
0.30 W/mk
-
Moisture Content
≤8%
-
Reaction to Fire
EN 13501-1 class A1-s1,d0 Non Combustible
-
Biological Resistance
Highly Resistant
-
Surface Condition
-
Front Face
Woodgrain natural, stained or painted
-
Back Face
Textured
-
-
Durability
((Life Expectancy - Minimum))30 years
-
Standard Board Size
3660 x 190mm
-
Thickness
((mm))7.5mm
-
Nominal Weight of Product
((kg/m²))-
Natural
10.95
-
Painted or Stained
11.25
-
-
Dimensional Tolerance
-
Length
+1/-2mm
-
Width
+1/-2mm
-
Thickness
+1/-10%
-
-
Product Testing and Certification
-
Fire Reaction Tests
A1 Fire Classification BS EN 13501-1: 2018
BS EN ISO 1716:2010
BS EN ISO 1182:2010
-
Physical Properties
BS EN ISO 12467
-
Calculation of Board Quantity
190mm - (sq meterage of elevation) / 0.5856 = no of boards required
-
Supertech Weatherboard System: Colours
Supertech Weatherboard has a unique colour palette and comes in two standard ranges; painted and stained. Whether your project is rural or urban, it is important that the building blends seamlessly into the landscape. As a result, just in case we don’t have the colour you require in our standard collection, we are able to match Supertech weatherboard to any RAL colour. We offer small minimum quantities and short lead times as standard.
The painted collection is made up of 18 of the most popular RAL colours used for weatherboard in the UK. With a range spanning from white to black, there is a colour to suit your landscape and create your dream project.
Please note that these colour swatches are a digital representation only and will not be colour correct. Please contact us or order a sample to see exact colours. If you would like a sample please click on the ‘add sample to basket’ button at the bottom right of this page and select your samples. Once selected you can add other products also, but please make sure you click on the sample basket at the top of the website to complete your request.
Bourne Fields Case Study
Aldridge Walsall
Bourne Fields is the name of Cameron Homes’ flagship development of 14 exclusive five-bedroom luxury homes completed in August 2017. Located near Aldridge these homes command a price tag of up to £1,350,000...
-
Bourne Fields Case Study
Aldridge Walsall
Bourne Fields is the name of Cameron Homes’ flagship development of 14 exclusive five-bedroom luxury...
-

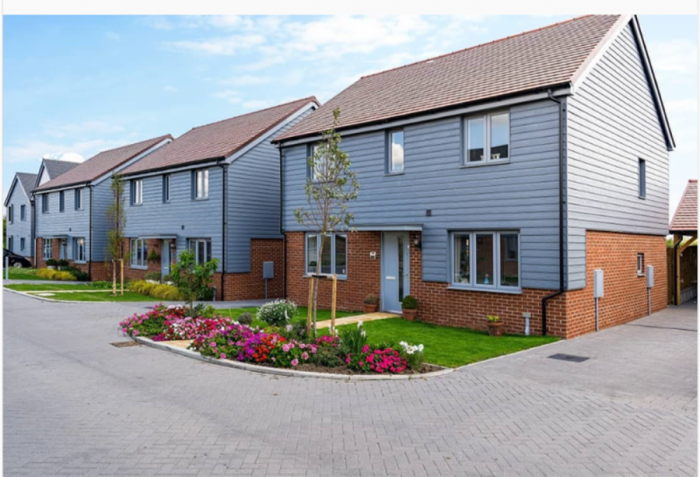

Manor Park Case Study
Ashford, Kent
Manor Park is a new build development of 53 homes, located on the northern edge of Ashford in Kent. Persimmon...
-
Conninbrook Lakes
Ashford, Kent
A major development has seen the creation of some 300 contemporary new homes in the heart of a country...
-
Pen Y Bont Case Study
Abersoch
Pen-Y-Bont is a development of new build waterfront properties in the popular seaside resort of Abersoch. A...
